6A2 38*53*M16 Mm D30/35 Vacuum Welded Diamond Drill Bits For Medical Industry

ZHENGZHOU JINCHUAN ABRASIVES CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

6A2 38*53*M16 Mm D30/35 Vacuum Welded Diamond Drill Bits For Medical Industry

Brand Name : JC

Model Number : 6A2

Certification : ISO

Place of Origin : Zhengzhou,China

MOQ : 5 pieces

Price : Negotiable

Payment Terms : L/C, D/A, T/T, Western Union,Paypal

Supply Ability : 10,000pcs/month

Delivery Time : 5-10 work days

Packaging Details : 1 pcs in one Paper Box

Bade material : Stell

Technology : Vacuum welding

Abrasive : Diamond

Diameter : 38mm

Thickness : 53mm

Screw size : M16

HS Code : 6804211000

Application : Mdeical Industry

Granularity : D30/35

Contact Now

6A2 38*53*M16 Mm D30/35 Vacuum Welded Diamond Drill Bits Product description:

Vacuum brazed diamond drill bits have important applications in the medical industry, especially in orthopedics, dentistry and precision surgery.

Advantages of vacuum brazing technology:


High-strength bonding: Brazing material (such as Ag-Cu-Ti alloy) and diamond are chemically metallurgically bonded, with a holding force of >200MPa, to avoid contamination caused by abrasive particles falling off during surgery.

High temperature resistance: Brazing in a vacuum environment (<10⁻³Pa) reduces oxidation and ensures the stability of the drill bit under high-speed rotation (such as 30,000rpm).

Customized design: Diamond particles can be precisely arranged (ordered/gradient distribution) to optimize cutting efficiency and heat dissipation.

Application scenarios in the medical industry:


Orthopedic surgery
Use: for bone cutting, window opening, and drilling.
Advantages: The high hardness of diamond can accurately cut hard bone tissue, reduce damage to surrounding soft tissue, and reduce the risk of thermal damage (vacuum brazing process ensures high temperature stability).
Dental treatment
Use: tooth preparation, implant drilling, and restoration shaping.
Advantages: Fine diamond particles (such as 20-50μm) achieve vibration-free cutting and protect tooth enamel; the brazing layer prevents abrasive particles from falling off and meets sterility requirements.
Neurosurgery, cardiology surgery
Use: skull drilling, fine bone flap cutting, heart valve drilling.
Advantages: The drill bit can be made into an ultra-fine diameter (such as 0.5-2mm) to meet the needs of high-precision surgery.

6A2 38*53*M16 Mm D30/35 Vacuum Welded Diamond Drill Bits For Medical Industry6A2 38*53*M16 Mm D30/35 Vacuum Welded Diamond Drill Bits For Medical Industry

If you need to customize, please provide the following information:

1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;

2. Abrasive, abrasive sand particle and concentration;

3. Adhesive;

4. Wheel application;

5. Pictures and drawings of wheels;

We can then design and quote for you


Product Tags:

6A2 D30 Diamond Drill Bits



Medical Industry Diamond Drill Bits


China 6A2 38*53*M16 Mm D30/35 Vacuum Welded Diamond Drill Bits For Medical Industry factory

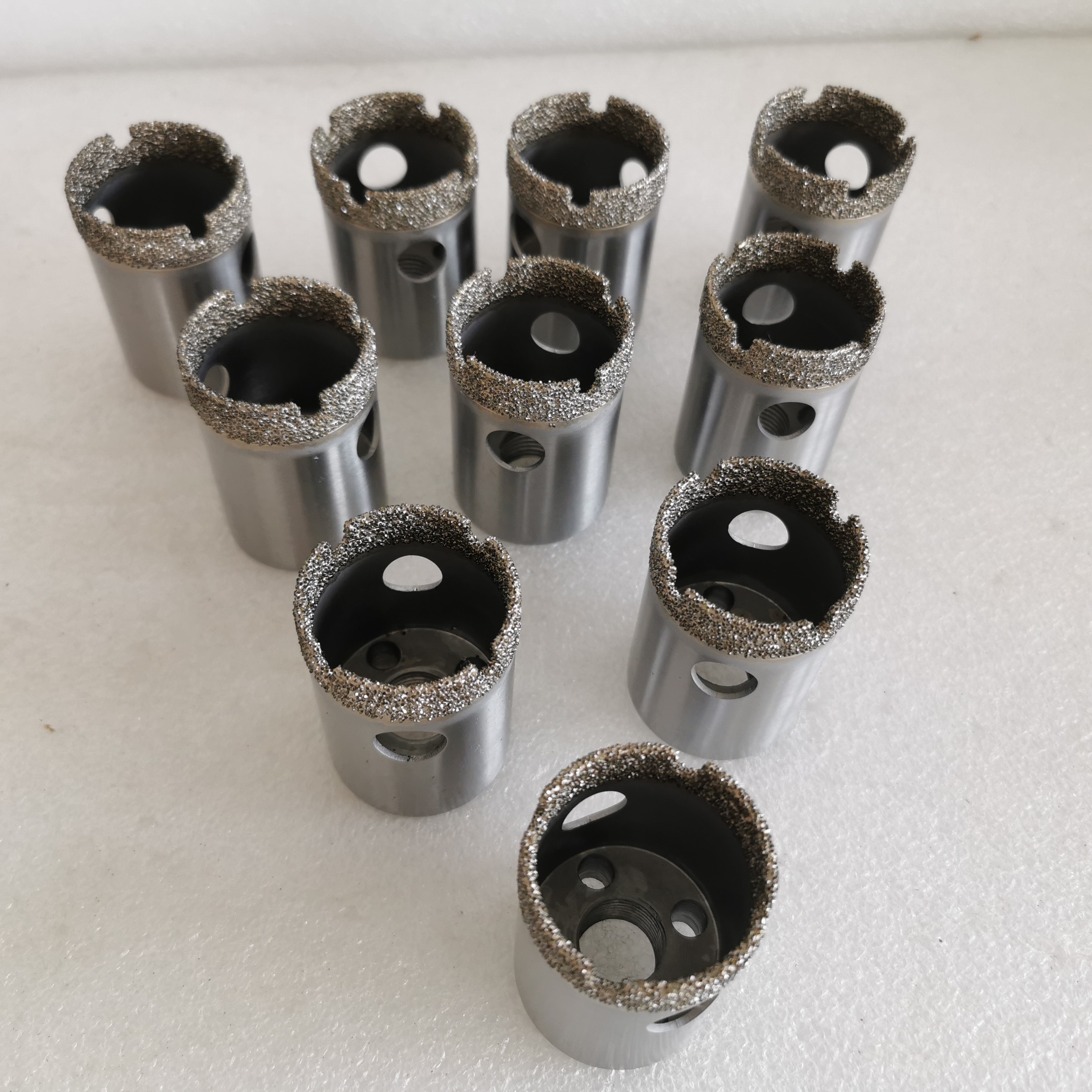

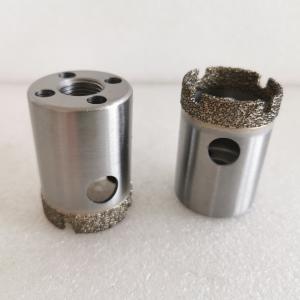

6A2 38*53*M16 Mm D30/35 Vacuum Welded Diamond Drill Bits For Medical Industry Images
